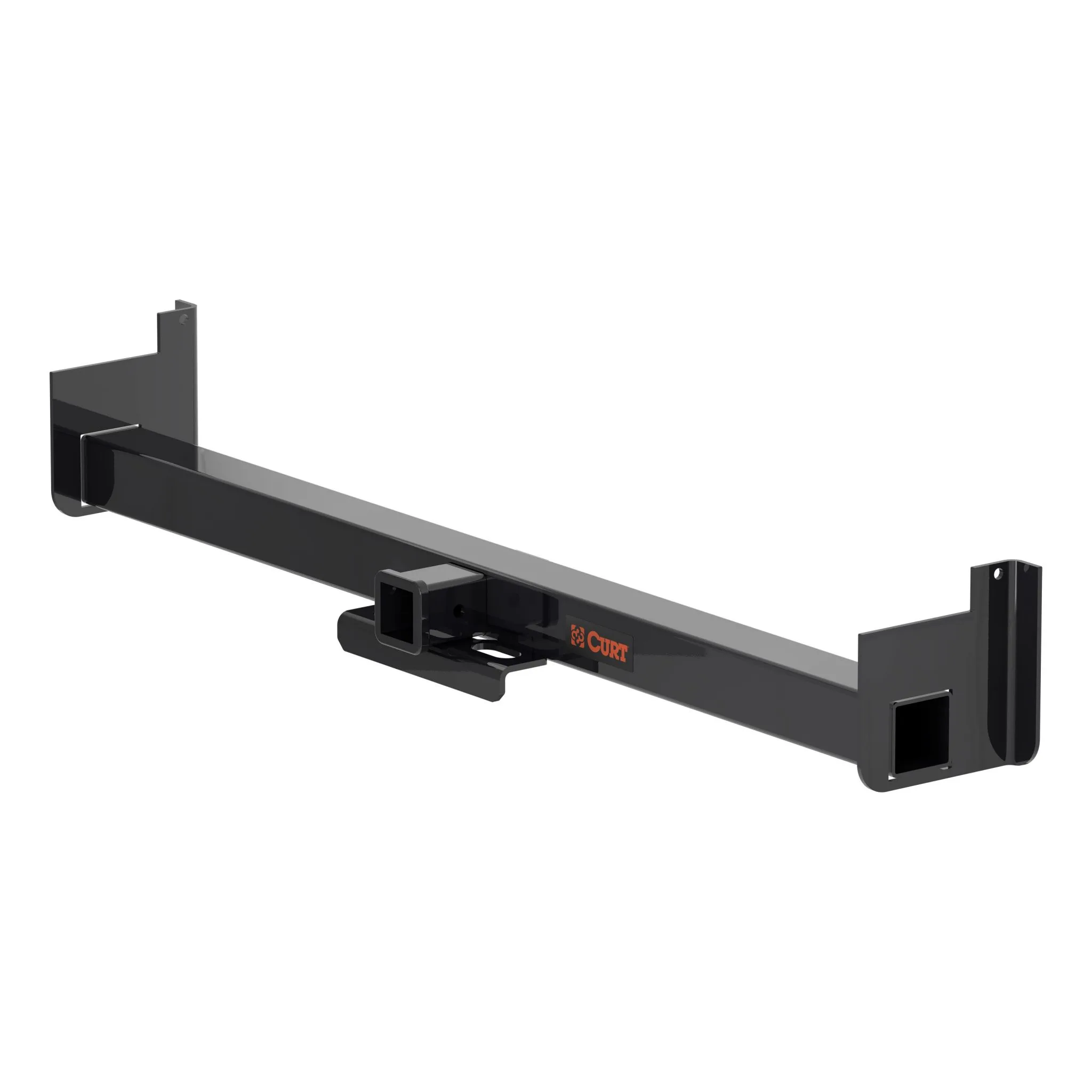

Universal Weld-On Trailer Hitch, 2-1/2″ Receiver (Up to 62″ Frames, 9″ Drop)
$371.95
CURT 15925 Class 5 Weld-On Hitch, 2-1/2-Inch Receiver, Up to 20,000 lbs, 62-In Frames, 9" Drop
- Adjustable frame fits a variety of vehicles (side plates do not come pre-welded)
- Fits truck frames up to 62″ wide
- Rated as a class 5 hitch
- Tested for safety in accordance with SAE J684
- Great for use with utility boxes
- Protected by a highly durable black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Made in USA
Additional Information
Additional information
| Weight | 26.76 kg |
|---|---|
| Dimensions | 62.0000 × 8.0000 × 5.0000 cm |
Description
CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on receiver hitch features a 2-1/2-inch receiver with a 9-inch drop. It fits frames up to 62 inches wide. The side plates ship unattached from the center section, allowing for a flexible, adjustable installation and a custom fit. No installation hardware required! This welded universal hitch is also rated as a class 5 hitch, being fully tested to SAE J684 specifications for a gross trailer weight capacity of up to 20,000 pounds (NOTE: To achieve 20K rating, side plates must be welded 42 inches wide or less). To protect this weld on receiver hitch from corrosion, it comes shielded with a co-cured finish of liquid A-coat and durable black powder coat.
Additional Attributes:
GTIN: 00612314159253
Box Height in Inches – XA: 22
Box Length in Inches – XA: 65
Box Width in Inches – XA: 12
Class ID: 7
Container Volume Cubic Feet – XA: 0.00000
Container Volume Cubic Meter – XA: 0.00000
Drop: 9 IN
Finish – XA: GLOSS BLACK POWDER COAT
Item Class – XA: MFH
Item Height – XA: 5.020
Item Length – XA: 62.000
Item Width – XA: 8.000
Main Body Shape: Square
Master Case Height Inches – XA: 0.000
Master Case Length Inches – XA: 0.000
Master Case Volume Cubic Feet – XA: 0.00000
Master Case Weight Lbs – XA: 0.000
Master Case Width Inches – XA: 0.000
Material – XA: Carbon Steel
Mount Type Description – XA: Not Applicable
Pallet Qty – XA: 20.000
Pallet Total Height Inches – XA: 0.000
Pallet Total Weight Per – XA: 0.000
Parcel Allowed – XA: Yes
Price Code – XA: 51
Product Weight – XA: 59.000
Prop 65 Label Text – XA: Blanks
Prop 65 Material – XA: Unknown
Prop 65 Reason – XA: Unknown
Prop 65 Warning Label Type – XA: Unknown
Prop 65 Warning Y/N – XA: NO
Rate Class – XA: 60.0
Receiver Tube Size: 2-1/2 IN
Retail Height – XA: 5.000
Retail Length – XA: 62.000
Retail Width – XA: 8.000
Sales Family Code – XA: HITCH
Sales Family Description – XA: HITCH
Sales Group Description – XA: CL 5
Shipping Weight – XA: 59.000
Side Application Type Description – XA: Not Applicable
Tariff 301 – XA: No
Tongue Weight (TW): 2,000 LB
Truckload Volume Cubic Feet – XA: 0.00000
Warranty: Limited Lifetime
Weight Carrying Capacity (WC): 2,000 LB
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 62.0000 x 8.0000 x 5.0000 inches
Weight: 59.0000 PG
15925_INS
