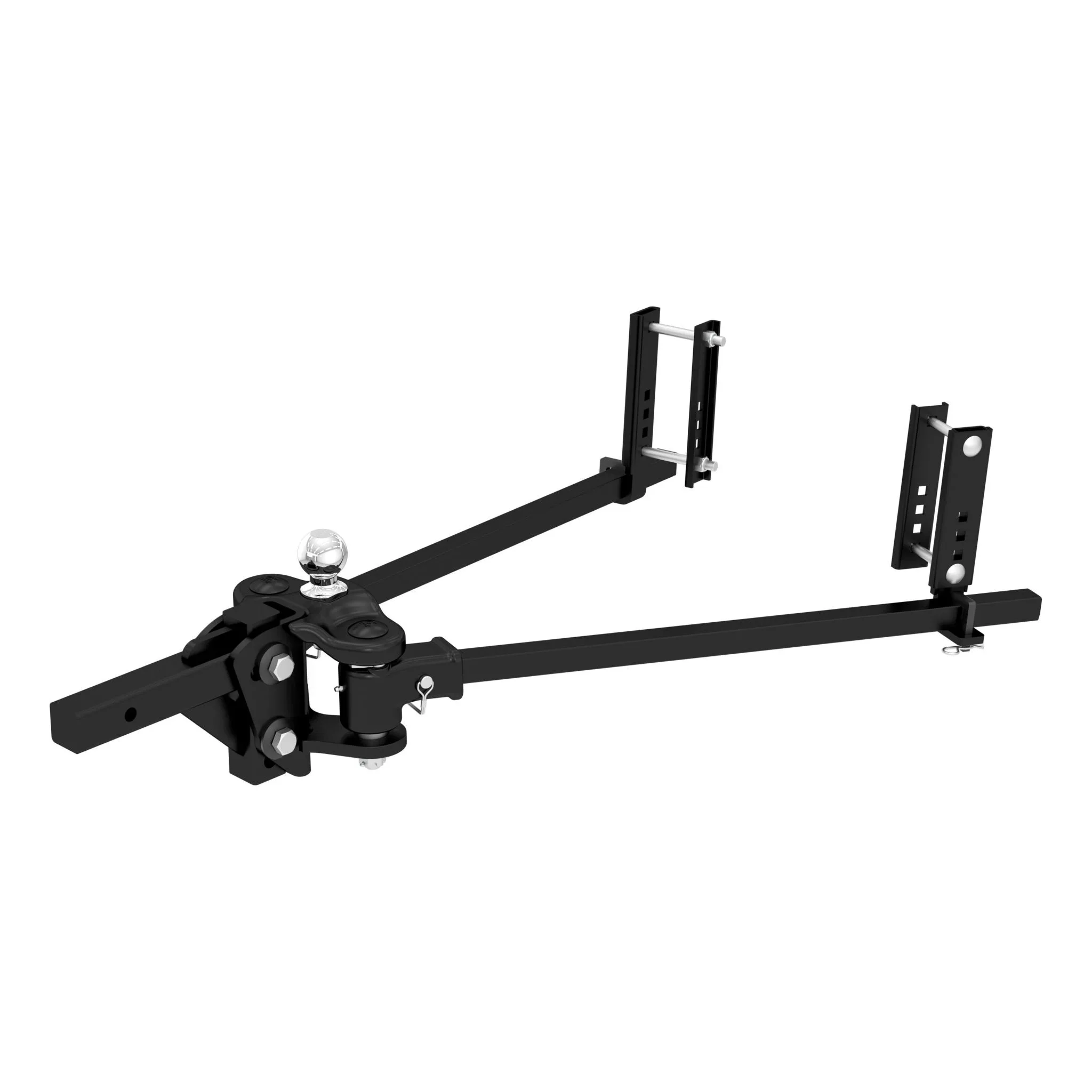

TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 10-15K
$939.95
CURT 17501 TruTrack 4P Weight Distribution Hitch with 4x Sway Control, Up to 15K, 2-In Shank, 2-5/16-Inch Ball
- 2" shank can be flipped to provide necessary drop or rise
Additional Information
Additional information
| Weight | 56.06 kg |
|---|---|
| Dimensions | 38.0000 × 13.8000 × 11.5000 cm |
Description
While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. The TruTrack 4P features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty.
Additional Attributes:
GTIN: 00612314175017
Container Cases Qty - XA: 300
Container Load Type - XA: PALLETS
Container Pallet Qty - XA: 20
Container Type - XA: 40GP
Container Unit Qty - XA: 300
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight Lbs - XA: 37180
Drop: 0 IN
Finish - XA: CARBIDE BLACK POWDER COAT
Gross Trailer Weight (GTW): 10,000 LB - 15,000 LB
Item Class - XA: OBS
Item Height - XA: 0.000
Item Length - XA: 0.000
Item Width - XA: 0.000
Master Case Height Inches - XA: 11.600
Master Case Length Inches - XA: 13.800
Master Case Qty - XA: 1
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 121.000
Master Case Width Inches - XA: 37.400
Material - XA: Carbon Steel
Mount Type Description - XA: Blank
Pallet Case Per - XA: 15
Pallet Case Per Layer - XA: 3
Pallet Cases Per - XA: 15
Pallet Cases Per Layer - XA: 3
Pallet Layer of Cases - XA: 5
Pallet Qty - XA: 0.000
Pallet Total Height Inches - XA: 63.400
Pallet Total Weight Per - XA: 1859.000
Parcel Allowed - XA: Yes
Product Weight - XA: 123.600
Prop 65 Label Text - XA: Blanks
Prop 65 Material - XA: Unknown
Prop 65 Reason - XA: Unknown
Prop 65 Warning Label Type - XA: Unknown
Prop 65 Warning Y/N - XA: NO
Rate Class - XA: 60.0
Retail Height - XA: 11.500
Retail Length - XA: 38.000
Retail Width - XA: 13.800
Rise: 5.75 IN
Sales Family Code - XA: WDIST
Sales Family Description - XA: WEIGHT DISTRIBUTION
Sales Group Description - XA: TRUTRACK WD SYSTEM
Shipping Weight - XA: 123.600
Side Application Type Description - XA: Blank
Tariff 301 - XA: Yes
Tongue Weight (TW): 1,000 LB - 1,500 LB
Truckload Volume Cubic Feet - XA: 0.00000
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 38.0000 x 13.8000 x 11.5000 inches
Weight: 123.6000 PG
17501_INS
