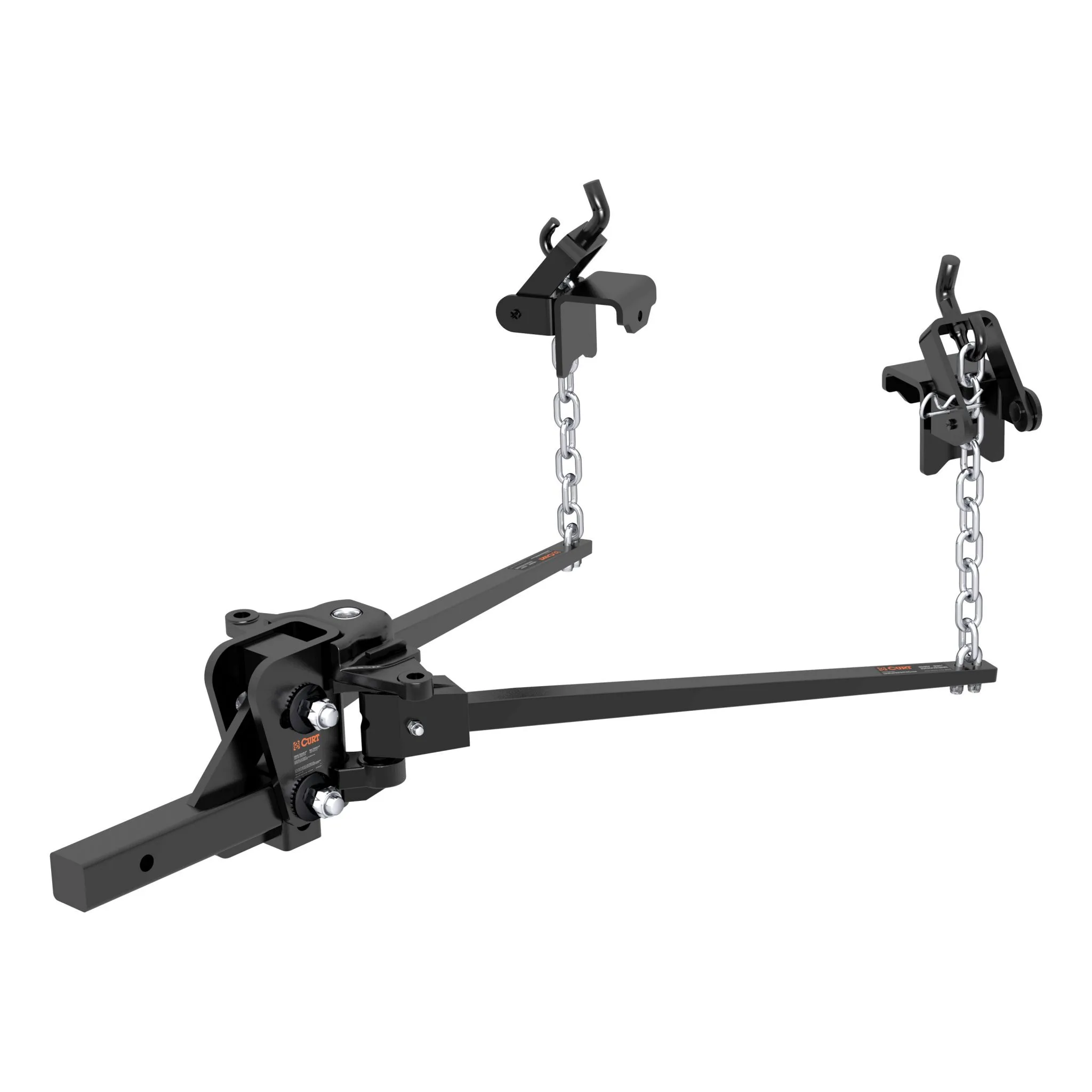

Short Trunnion Bar Weight Distribution Hitch (10K – 15K lbs., 28-3/8″ Bars)
$612.95
CURT 17333 Short Trunnion Bar Weight Distribution Hitch, Up to 15K, 2-Inch Shank
- 2″ shank can be flipped to provide necessary drop or rise
Additional Information
Additional information
| Weight | 39.46 kg |
|---|---|
| Dimensions | 34.0000 × 12.0000 × 8.0000 cm |
Description
The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailer's and vehicle's axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. CURT WD hitches come with a 2" x 2" shank and are compatible with class 3, 4 and most 5 trailer hitches, including Xtra Duty and Commercial Duty (2-1/2" replacement WD shank may be required), as well as some RV trailer hitches. While a weight distribution hitch will increase the gross trailer weight capacity of most trailer hitches, the vehicle's weight carrying capacity must be taken into consideration before towing a heavier trailer (NOTE: Never exceed the lowest weight capacity of any towing component).This trunnion bar weight distribution hitch features a heavy-duty formed head and square spring bars constructed from forged steel. It offers a gross trailer weight capacity up to 15,000 lbs. and a tongue weight capacity of 1,500 lbs. It also includes hook-up brackets, spring bar safety chains and a pin and clip. To protect this hitch from scratching, chipping, rust and UV damage, it also comes with a durable black powder coat finish. A trailer ball must be purchased separately.
Additional Attributes:
GTIN: 00612314173334
Color: Black
Container Volume Cubic Feet – XA: 0.00000
Container Volume Cubic Meter – XA: 0.00000
Finish – XA: CARBIDE BLACK POWDER COAT
Gross Trailer Weight (GTW): 15,000 LB
Item Class – XA: OBS
Item Height – XA: 0.000
Item Length – XA: 0.000
Item Width – XA: 0.000
Master Case Height Inches – XA: 0.000
Master Case Length Inches – XA: 0.000
Master Case Volume Cubic Feet – XA: 0.00000
Master Case Weight Lbs – XA: 0.000
Master Case Width Inches – XA: 0.000
Material – XA: Blank
Mount Type Description – XA: Blank
Pallet Qty – XA: 20.000
Pallet Total Height Inches – XA: 0.000
Pallet Total Weight Per – XA: 0.000
Parcel Allowed – XA: Yes
Product Weight – XA: 0.000
Prop 65 Label Text – XA: Blanks
Prop 65 Material – XA: Unknown
Prop 65 Reason – XA: Unknown
Prop 65 Warning Label Type – XA: Unknown
Prop 65 Warning Y/N – XA: NO
Rate Class – XA: 70.0
Retail Height – XA: 8.000
Retail Length – XA: 34.000
Retail Width – XA: 12.000
Sales Family Code – XA: WDIST
Sales Family Description – XA: WEIGHT DISTRIBUTION
Sales Group Description – XA: TRUNNION WD SYSTEM
Shipping Weight – XA: 87.000
Side Application Type Description – XA: Blank
Tariff 301 – XA: Yes
Tongue Weight (TW): 1,500 LB
Truckload Volume Cubic Feet – XA: 0.00000
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Extended Information:
Emissions : 4
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 34.0000 x 12.0000 x 8.0000 inches
Weight: 87.0000 PG
17333_INS
