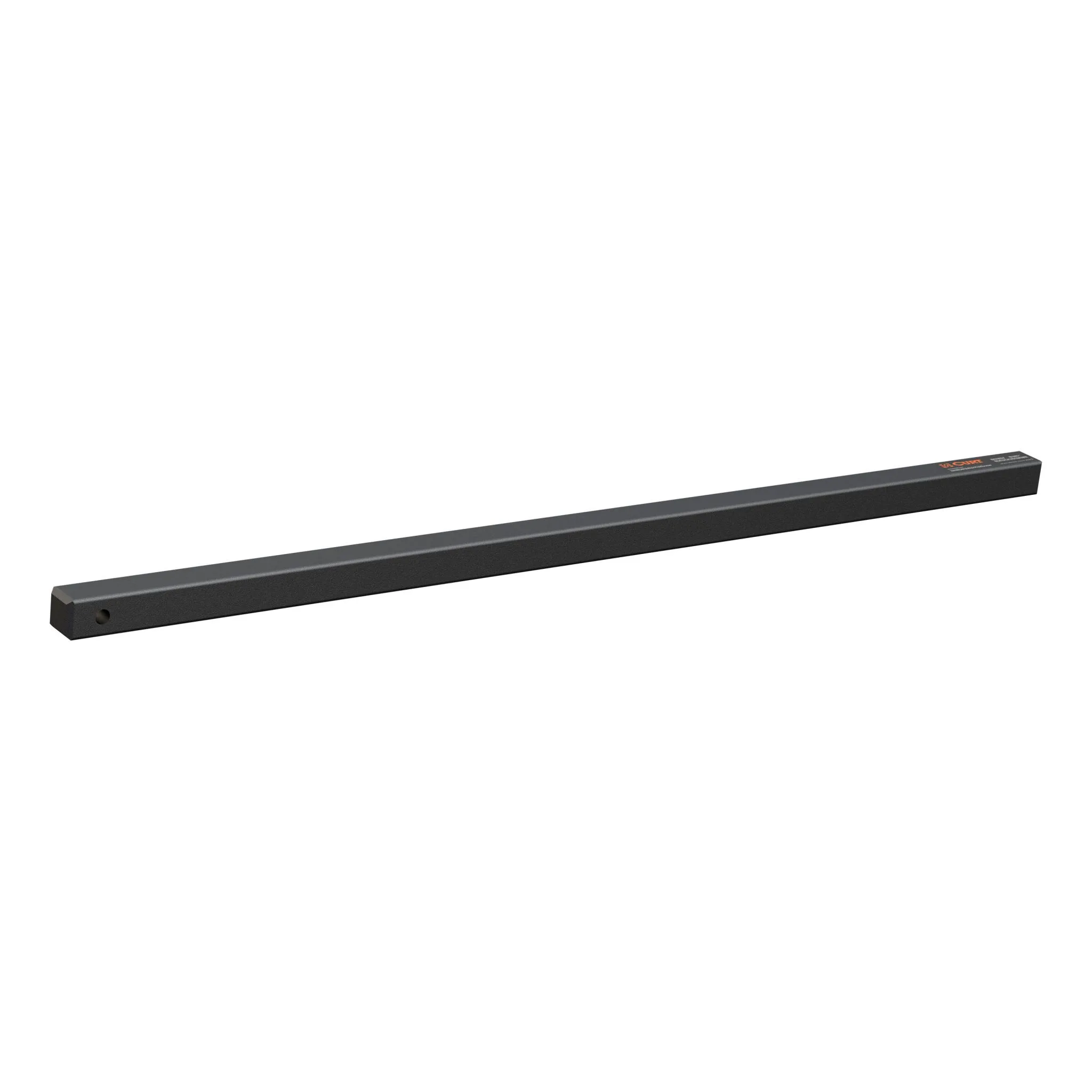

Replacement TruTrack Weight Distribution Spring Bar

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible. This, coupled with one of the easiest setups in the industry, truly makes the TruTrack unparalleled in its class. Like all WD hitches, the TruTrack uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. This replacement TruTrack spring bar features forged steel construction and a durable powder coat finish for long-lasting use. It offers a gross trailer weight capacity of 8,000 – 10,000 lbs. and a tongue weight capacity of 800 – 1,000 lbs. It also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. One spring bar is included in this package.

Additional Attributes:

GTIN: 00612314175369
Color: Black
Container Volume Cubic Feet – XA: 0.00000
Container Volume Cubic Meter – XA: 0.00000
Finish – XA: CARBIDE BLACK POWDER COAT
Gross Trailer Weight (GTW): 8,000 LB – 10,000 LB
Item Class – XA: OBS
Item Height – XA: 0.000
Item Length – XA: 0.000
Item Width – XA: 0.000
Master Case Height Inches – XA: 0.000
Master Case Length Inches – XA: 0.000
Master Case Volume Cubic Feet – XA: 0.00000
Master Case Weight Lbs – XA: 0.000
Master Case Width Inches – XA: 0.000
Material – XA: Blank
Mount Type Description – XA: Blank
Pallet Qty – XA: 0.000
Pallet Total Height Inches – XA: 0.000
Pallet Total Weight Per – XA: 0.000
Parcel Allowed – XA: Yes
Product Weight – XA: 0.000
Prop 65 Label Text – XA: Blanks
Prop 65 Material – XA: Unknown
Prop 65 Reason – XA: Unknown
Prop 65 Warning Label Type – XA: Unknown
Prop 65 Warning Y/N – XA: NO
Rate Class – XA: 60.0
Retail Height – XA: 1.250
Retail Length – XA: 35.500
Retail Width – XA: 1.250
Sales Family Code – XA: REPL
Sales Family Description – XA: REPLACEMENT PARTS
Sales Group Description – XA: REPLACMENT PARTS CURT
Shipping Weight – XA: 15.000
Side Application Type Description – XA: Blank
Tariff 301 – XA: Yes
Tongue Weight (TW): 800 LB – 1,000 LB
Truckload Volume Cubic Feet – XA: 0.00000
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 35.5000 x 1.2500 x 1.2500 inches
Weight: 15.0000 PG
