Fusion Ball Mount with 2″ Ball (2″ Shank, 7,500 lbs., 2″ Drop)

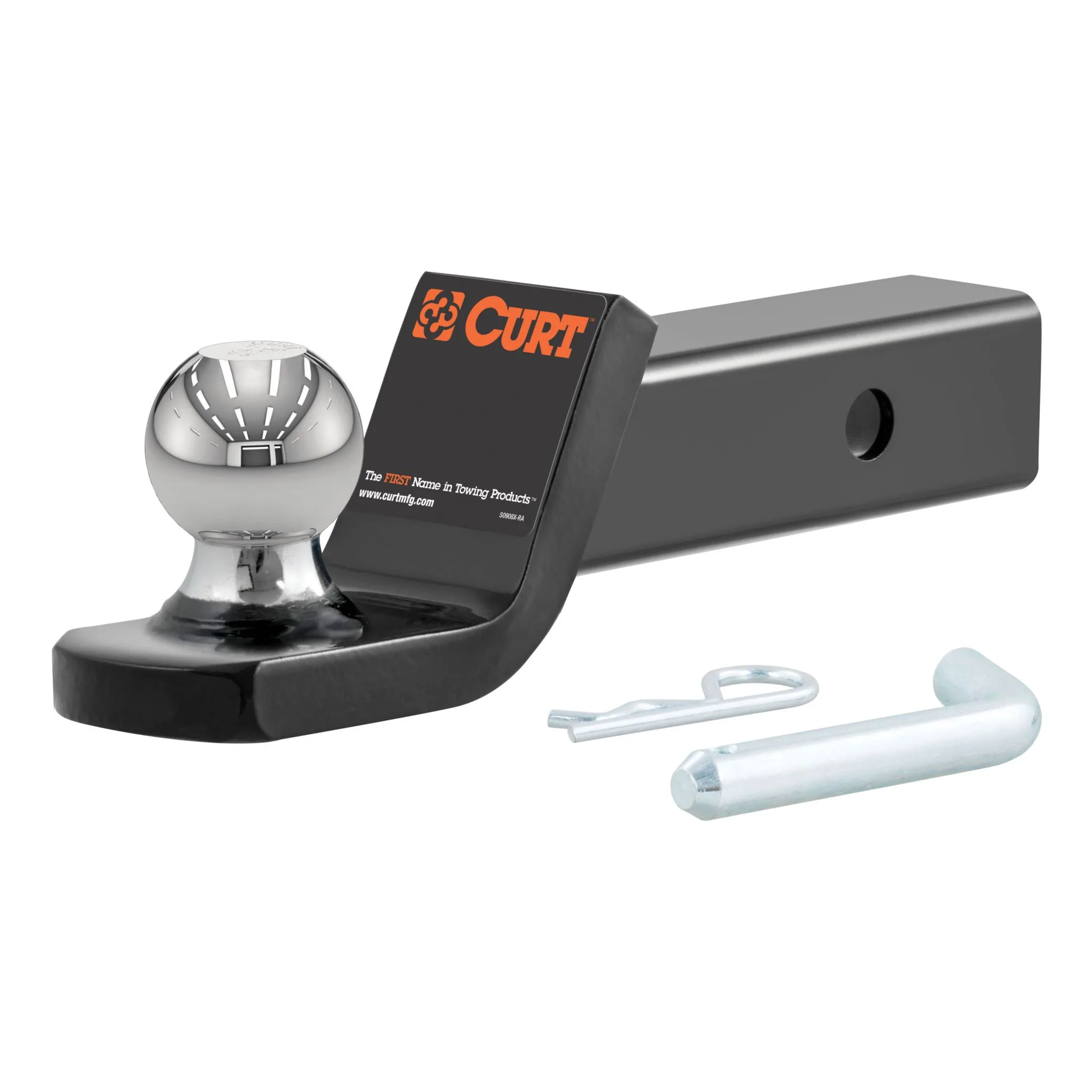

Arm yourself with confidence with a CURT Fusion ball mount. Much like our loaded ball mounts, CURT Fusion mounts come with a trailer ball pre-attached to the mounting platform to provide a ready-to-tow solution right out the package. Unlike a loaded ball mount, however, a Fusion ball mount features a trailer ball that is permanently fixed to the shank structure, making it stronger than a traditional non-welded ball mount. With their fixed tow ball, Fusion ball mounts are also very similar to our Euro Mount ball mounts. Besides increased strength, one advantage of a permanently attached trailer ball is that it can never be loosened or stolen from your vehicle. CURT Fusion ball mounts come with 2" x 2" shanks and include a pin and clip with each unit. This particular Fusion mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight rating of 750 lbs. It measures 7-1/2" long, has 2" of drop and comes with a 2" diameter trailer ball. CURT Fusion ball mounts are great for towing most standard size trailers, including utility trailers, livestock trailers, boat trailers and campers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Each unit is robotically welded to ensure accurate, consistent cuts and clean, strong weld lines. Once welded, these ball mounts undergo a cleaning process that creates a flawless surface for the application of our highly durable gloss black powder coat finish for long-lasting resistance to corrosion and chipping.

Additional Attributes:

GTIN: 00612314034000
Ball Diameter: 2 IN
Box Height in Inches – XA: 3
Box Length in Inches – XA: 12
Box Width in Inches – XA: 4
Container Cases Qty – XA: 2304
Container Load Type – XA: PALLETS
Container Pallet Qty – XA: 16
Container Type – XA: 40GP
Container Unit Qty – XA: 4608
Container Volume Cubic Feet – XA: 0.00000
Container Volume Cubic Meter – XA: 0.00000
Container Weight KG – XA: 18000
Container Weight Lbs – XA: 39593
Drop: 2 IN
Finish – XA: GLOSS BLACK POWDER COAT
Gross Trailer Weight (GTW): 7,500 LB
Item Class – XA: OBS
Item Height – XA: 0.000
Item Length – XA: 0.000
Item Width – XA: 0.000
Master Case Height Inches – XA: 4.750
Master Case ITF14: 20612314034004
Master Case ITF14 – XA: 20612314034004
Master Case Length Inches – XA: 13.390
Master Case Qty – XA: 2
Master Case Volume Cubic Feet – XA: 0.00000
Master Case Weight Lbs – XA: 16.900
Master Case Width Inches – XA: 5.625
Material – XA: Blank
Mount Type Description – XA: Blank
Pallet Case Per – XA: 144
Pallet Case Per Layer – XA: 48
Pallet Cases Per – XA: 144
Pallet Cases Per Layer – XA: 48
Pallet Layer of Cases – XA: 3
Pallet Qty – XA: 0.000
Pallet Total Height Inches – XA: 19.250
Pallet Total Weight Per – XA: 2474.600
Parcel Allowed – XA: Yes
Product Weight – XA: 7.950
Prop 65 Label Text – XA: Blanks
Prop 65 Material – XA: Unknown
Prop 65 Reason – XA: Unknown
Prop 65 Warning Label Type – XA: Unknown
Prop 65 Warning Y/N – XA: NO
Rate Class – XA: 60.0
Receiver Tube Size: 2 IN
Retail Height – XA: 2.500
Retail Length – XA: 11.750
Retail Width – XA: 3.250
Sales Family Code – XA: ACCES
Sales Family Description – XA: ACCESSORIES
Sales Group Description – XA: BALL MOUNT
Shipping Weight – XA: 7.950
Side Application Type Description – XA: Blank
Tariff 301 – XA: Yes
Tongue Weight (TW): 750 LB
Truckload Cases Qty – XA: 2304
Truckload Dom Pickup Location – XA: Eau Claire, Wi
Truckload Pallets Qty – XA: 16
Truckload Units Qty – XA: 4608
Truckload Volume Cubic Feet – XA: 83.00000
Truckload Weight – XA: 39593
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 11.7500 x 3.2500 x 2.5000 inches
Weight: 7.9500 PG
