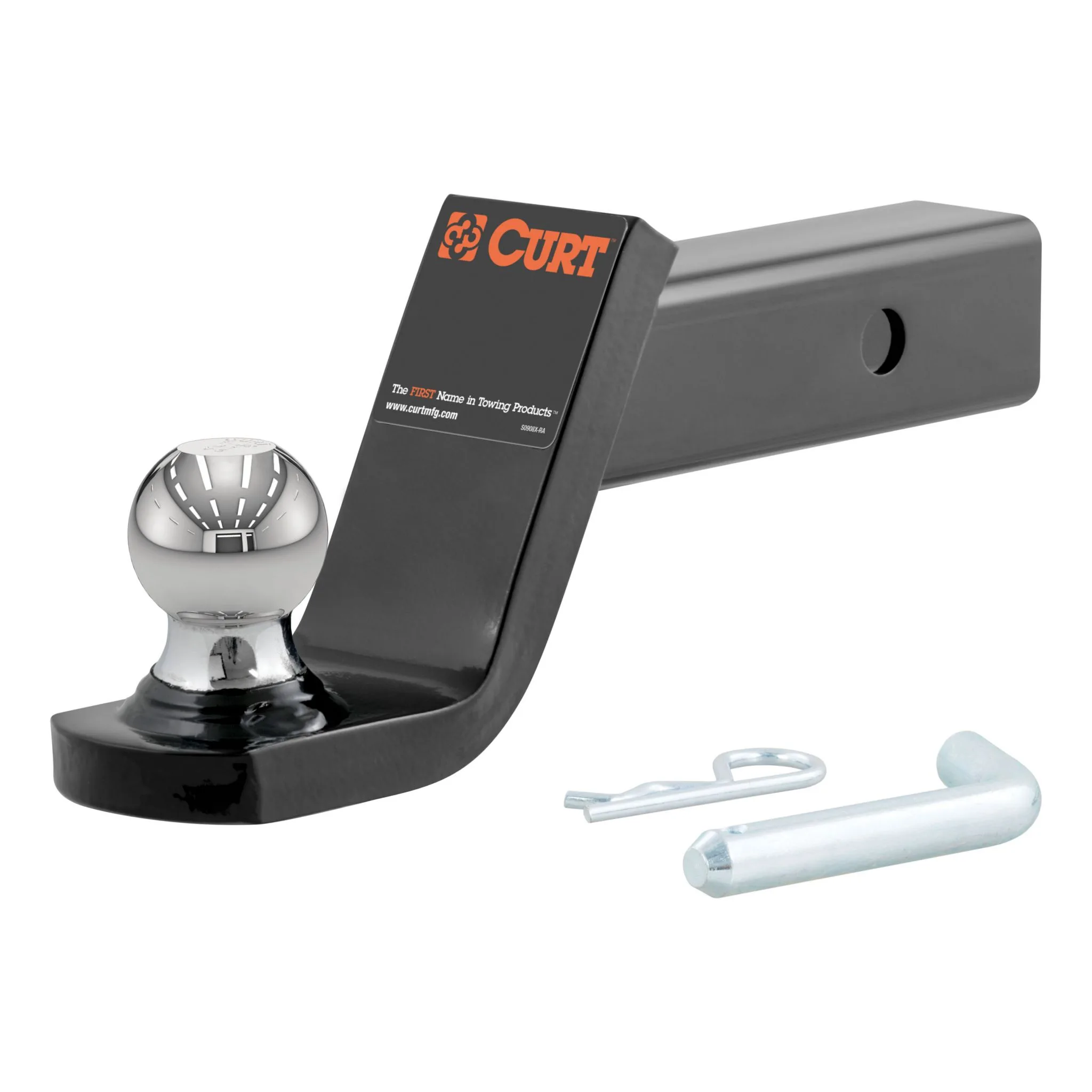

Fusion Ball Mount with 1-7/8″ Ball (2″ Shank, 5,000 lbs., 4″ Drop)

Arm yourself with confidence with a CURT Fusion ball mount. Much like our loaded ball mounts, CURT Fusion mounts come with a trailer ball pre-attached to the mounting platform to provide a ready-to-tow solution right out the package. Unlike a loaded ball mount, however, a Fusion ball mount features a trailer ball that is permanently fixed to the shank structure, making it stronger than a traditional non-welded ball mount. With their fixed tow ball, Fusion ball mounts are also very similar to our Euro Mount ball mounts. Besides increased strength, one advantage of a permanently attached trailer ball is that it can never be loosened or stolen from your vehicle. CURT Fusion ball mounts come with 2" x 2" shanks and include a pin and clip with each unit. This particular Fusion mount features a gross trailer weight capacity of 5,000 lbs. and a tongue weight rating of 500 lbs. It measures 8-1/8" long, has 4" of drop and comes with a 1-7/8" diameter trailer ball. CURT Fusion ball mounts are great for towing most standard size trailers, including utility trailers, livestock trailers, boat trailers and campers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Each unit is robotically welded to ensure accurate, consistent cuts and clean, strong weld lines. Once welded, these ball mounts undergo a cleaning process that creates a flawless surface for the application of our highly durable gloss black powder coat finish for long-lasting resistance to corrosion and chipping.

Additional Attributes:

GTIN: 00612314051007
Ball Diameter: 1-7/8 IN
Box Height in Inches – XA: 2
Box Length in Inches – XA: 7
Box Width in Inches – XA: 4
Container Volume Cubic Feet – XA: 0.00000
Container Volume Cubic Meter – XA: 0.00000
Drop: 4 IN
Finish – XA: GLOSS BLACK POWDER COAT
Gross Trailer Weight (GTW): 5,000 LB
Item Class – XA: OBS
Item Height – XA: 0.000
Item Length – XA: 0.000
Item Width – XA: 0.000
Master Case Height Inches – XA: 6.125
Master Case ITF14: 20612314051001
Master Case ITF14 – XA: 20612314051001
Master Case Length Inches – XA: 12.750
Master Case Qty – XA: 4
Master Case Volume Cubic Feet – XA: 0.00000
Master Case Weight Lbs – XA: 37.000
Master Case Width Inches – XA: 8.500
Material – XA: Blank
Mount Type Description – XA: Blank
Pallet Qty – XA: 0.000
Pallet Total Height Inches – XA: 0.000
Pallet Total Weight Per – XA: 0.000
Parcel Allowed – XA: Yes
Product Weight – XA: 0.000
Prop 65 Label Text – XA: Blanks
Prop 65 Material – XA: Unknown
Prop 65 Reason – XA: Unknown
Prop 65 Warning Label Type – XA: Unknown
Prop 65 Warning Y/N – XA: NO
Rate Class – XA: 65.0
Receiver Tube Size: 2 IN
Retail Height – XA: 6.020
Retail Length – XA: 12.600
Retail Width – XA: 8.700
Sales Family Code – XA: ACCES
Sales Family Description – XA: ACCESSORIES
Sales Group Description – XA: BALL MOUNT
Shipping Weight – XA: 9.000
Side Application Type Description – XA: Blank
Tariff 301 – XA: Yes
Tongue Weight (TW): 500 LB
Truckload Volume Cubic Feet – XA: 0.00000
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 12.6000 x 8.7000 x 6.0200 inches
Weight: 9.0000 PG
