Double Lock Gooseneck Hitch, 2-5/16″ Ball, 30K (Brackets Required)

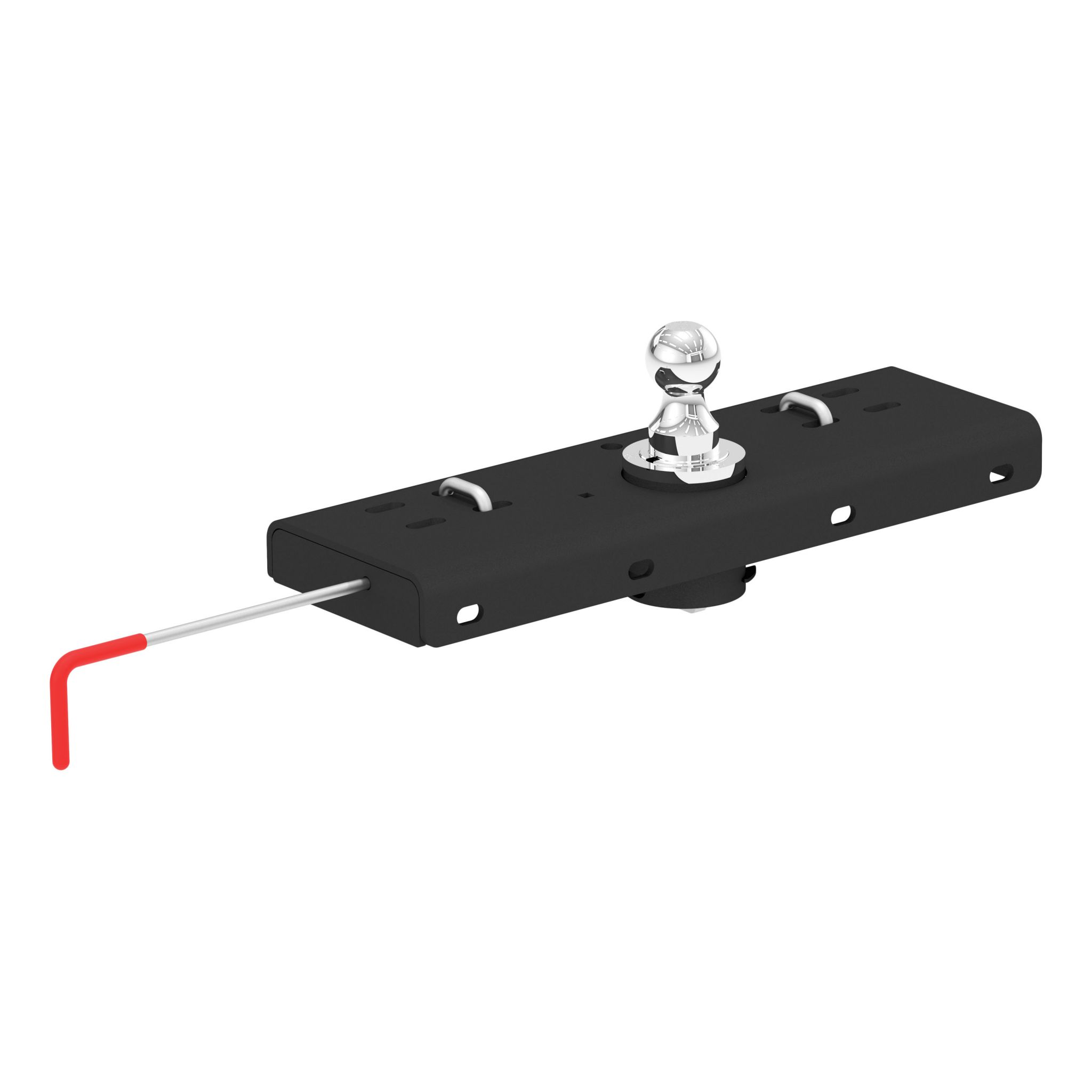

A CURT gooseneck hitch is more than a necessary tool for towing; it is an integrated extension of your truck that allows you turn your 4×4 into the workhorse it was designed to be. Gooseneck hitches are stronger, tougher and more subtle than any other, and when quality craftsmanship and intelligent design become the fuel that drives a gooseneck hitch, you get a towing solution that leaves others lost for words. The CURT under-bed Double Lock gooseneck hitch is strong, fast and easy to operate. It gets its name from the two locking pins that engage the trailer ball and hold it in place, giving you twice the security when towing especially heavy trailers. The Double Lock mounts underneath your truck bed with compatible gooseneck installation brackets and provides a removable 2-5/16" gooseneck trailer ball with a gross trailer weight capacity up to 30,000 lbs. and a tongue weight capacity of 7,500 lbs. Using the heavy-duty operating handle, the trailer ball can be unlocked and flipped over whenever necessary to allow full use of the truck bed. The Double Lock comes with solid safety chain hookups, an attractive chrome trim ring, a durable A-coat finish and a limited lifetime warranty. This particular Double Lock gooseneck hitch is design to fit several models of Chevrolet, GMC, Dodge, Ram, Ford and Toyota (for a complete listing of vehicle and installation bracket compatibility, see application info).

Additional Attributes:

GTIN: 00612314606078
Ball Diameter: 2-5/16 IN
Container Volume Cubic Feet – XA: 0.00000
Container Volume Cubic Meter – XA: 0.00000
Finish – XA: A-COAT
Gooseneck Hitch Type: Double-Lock Hitch
Gross Trailer Weight (GTW): 30,000 LB
Item Class – XA: OBS
Item Height – XA: 0.000
Item Length – XA: 0.000
Item Width – XA: 0.000
Master Case Height Inches – XA: 0.000
Master Case Length Inches – XA: 0.000
Master Case Volume Cubic Feet – XA: 0.00000
Master Case Weight Lbs – XA: 0.000
Master Case Width Inches – XA: 0.000
Material – XA: Carbon Steel
Mount Type Description – XA: Blank
Pallet Qty – XA: 0.000
Pallet Total Height Inches – XA: 0.000
Pallet Total Weight Per – XA: 0.000
Parcel Allowed – XA: Yes
Product Weight – XA: 0.000
Prop 65 Label Text – XA: Blanks
Prop 65 Material – XA: Unknown
Prop 65 Reason – XA: Unknown
Prop 65 Warning Label Type – XA: Unknown
Prop 65 Warning Y/N – XA: NO
Rate Class – XA: 85.0
Retail Height – XA: 5.000
Retail Length – XA: 26.000
Retail Width – XA: 9.000
Sales Family Code – XA: GOOSE
Sales Family Description – XA: GOOSENECK
Sales Group Description – XA: GOOSENECK HITCH HITCH
Shipping Weight – XA: 34.000
Side Application Type Description – XA: Blank
Tariff 301 – XA: Yes
Tongue Weight (TW): 7,500 LB
Truckload Volume Cubic Feet – XA: 0.00000
Vertical Load: 7,500 LB
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 26.0000 x 9.0000 x 5.0000 inches
Weight: 34.0000 PG

PDF:

60607_INS
