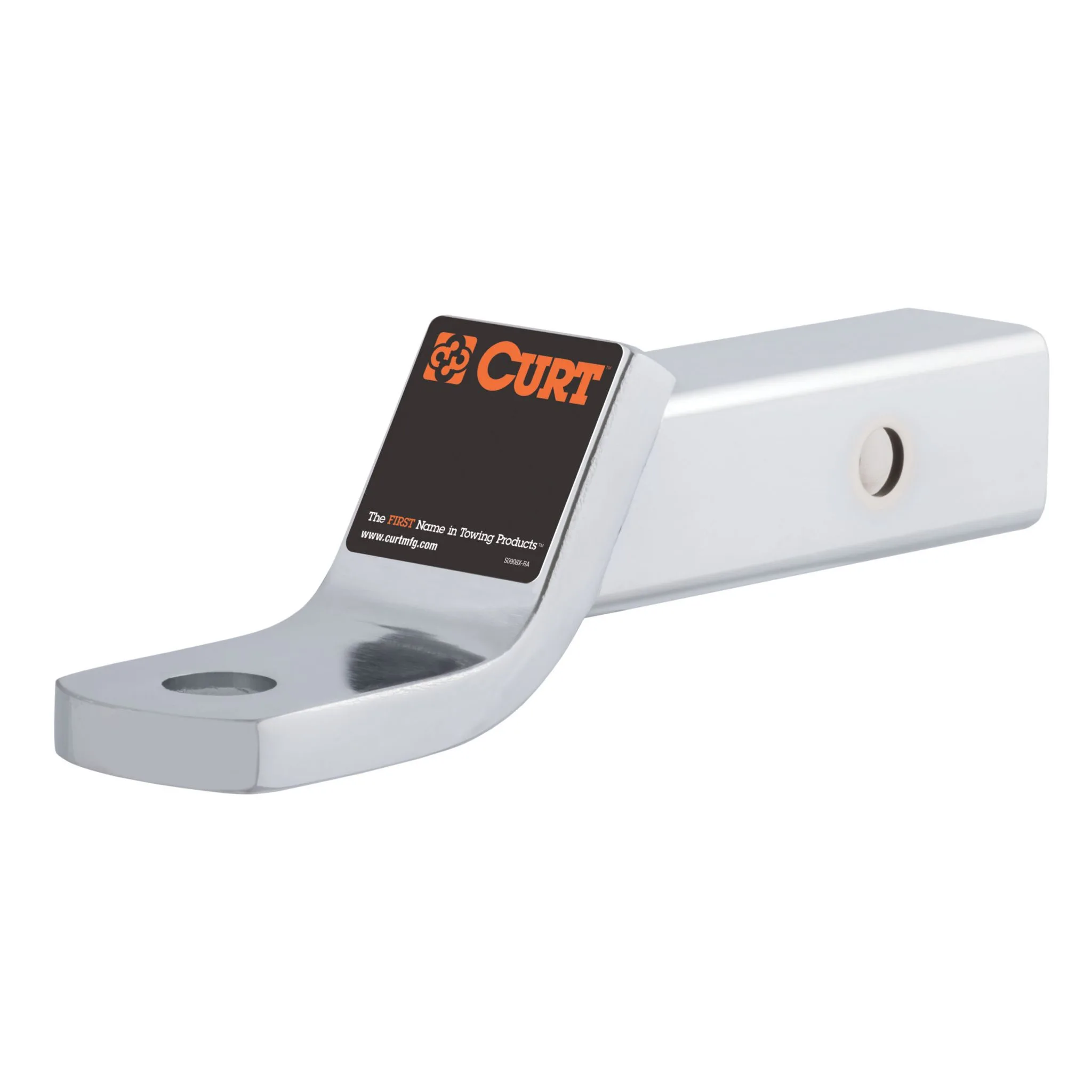

Class 3 Ball Mount (2" Shank, 7,500 lbs., 2" Drop, 7-1/2" Long, Chrome)

CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 8-1/4", a drop of 2" and a possible rise of 3/4". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a bright chrome-plated finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.

Additional Attributes:

GTIN: 00612314445004
Box Height in Inches - XA: 2
Box Length in Inches - XA: 7
Box Width in Inches - XA: 4
Container Cases Qty - XA: 2016
Container Pallet Qty - XA: 16
Container Type - XA: 40GP
Container Unit Qty - XA: 4032
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Container Weight KG - XA: 12247
Container Weight Lbs - XA: 26944
Drop: 2 IN
Finish - XA: Chrome
Gross Trailer Weight (GTW): 7,500 LB
Item Class - XA: OBS
Item Height - XA: 0.000
Item Length - XA: 0.000
Item Width - XA: 0.000
Master Case Height Inches - XA: 3.130
Master Case ITF14: 10612314445001
Master Case ITF14 - XA: 10612314445001
Master Case Length Inches - XA: 12.250
Master Case Qty - XA: 2
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 13.000
Master Case Width Inches - XA: 5.500
Material - XA: Blank
Mount Type Description - XA: Blank
Pallet Case Per - XA: 126
Pallet Case Per Layer - XA: 18
Pallet Cases Per - XA: 126
Pallet Cases Per Layer - XA: 18
Pallet Layer of Cases - XA: 7
Pallet Qty - XA: 0.000
Pallet Total Height Inches - XA: 26.875
Pallet Total Weight Per - XA: 1684.000
Parcel Allowed - XA: Yes
Product Weight - XA: 0.000
Prop 65 Label Text - XA: Blanks
Prop 65 Material - XA: Unknown
Prop 65 Reason - XA: Unknown
Prop 65 Warning Label Type - XA: Unknown
Prop 65 Warning Y/N - XA: NO
Rate Class - XA: 60.0
Receiver Tube Size: 2 IN
Retail Height - XA: 3.000
Retail Length - XA: 12.000
Retail Width - XA: 4.000
Rise: 3/4 IN
Sales Family Code - XA: ACCES
Sales Family Description - XA: ACCESSORIES
Sales Group Description - XA: BALL MOUNT
Shipping Weight - XA: 6.000
Side Application Type Description - XA: Blank
Tariff 301 - XA: Yes
Tongue Weight (TW): 750 LB
Truckload Cases Qty - XA: 2016
Truckload Dom Pickup Location - XA: Eau Claire, Wi
Truckload Pallets Qty - XA: 16
Truckload Units Qty - XA: 2016
Truckload Volume Cubic Feet - XA: 92.00000
Truckload Weight - XA: 27525
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 12.0000 x 4.0000 x 3.0000 inches
Weight: 6.0000 PG
