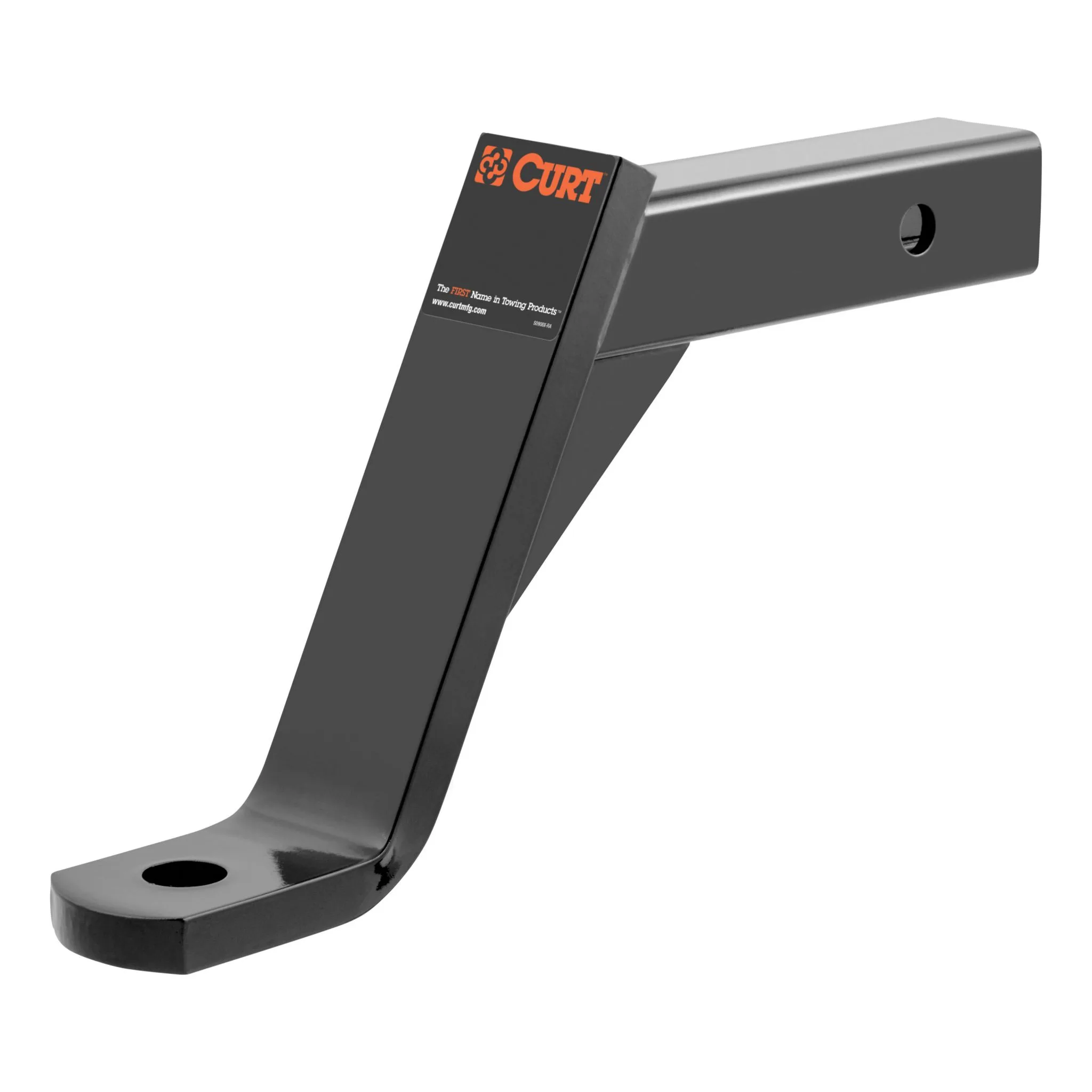

Class 3 Ball Mount (2" Shank, 5,000 lbs., 8" Drop, 11-1/2" Long)

CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount can be used in the drop position to provide a drop of 8", a gross trailer weight capacity of 5,000 lbs. and a tongue weight capacity of 500 lbs. It can also be flipped to provide a rise of 6", a gross trailer weight capacity of 3,500 lbs. and a tongue weight capacity of 350 lbs. It features a length of 11-1/2". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.

Additional Attributes:

GTIN: 00612314409006
Box Height in Inches - XA: 24
Box Length in Inches - XA: 8
Box Width in Inches - XA: 2
Container Volume Cubic Feet - XA: 0.00000
Container Volume Cubic Meter - XA: 0.00000
Drop: 8 IN
Finish - XA: GLOSS BLACK POWDER COAT
GTW/TW Ball Drop: 5,000 LB / 500 LB
GTW/TW Ball Rise: 3,500 LB / 350 LB
Item Class - XA: OMF
Item Height - XA: 0.000
Item Length - XA: 0.000
Item Width - XA: 0.000
Master Case Height Inches - XA: 3.000
Master Case Length Inches - XA: 16.000
Master Case Qty - XA: 1
Master Case Volume Cubic Feet - XA: 0.00000
Master Case Weight Lbs - XA: 11.000
Master Case Width Inches - XA: 9.000
Material - XA: Carbon Steel
Mount Type Description - XA: Blank
Pallet Qty - XA: 234.000
Pallet Total Height Inches - XA: 0.000
Pallet Total Weight Per - XA: 0.000
Parcel Allowed - XA: Yes
Product Weight - XA: 0.000
Prop 65 Label Text - XA: Blanks
Prop 65 Material - XA: Unknown
Prop 65 Reason - XA: Unknown
Prop 65 Warning Label Type - XA: Unknown
Prop 65 Warning Y/N - XA: NO
Rate Class - XA: 60.0
Receiver Tube Size: 2 IN
Retail Height - XA: 3.000
Retail Length - XA: 16.000
Retail Width - XA: 9.000
Rise: 6 IN
Sales Family Code - XA: ACCES
Sales Family Description - XA: ACCESSORIES
Sales Group Description - XA: BALL MOUNT
Shipping Weight - XA: 10.000
Side Application Type Description - XA: Blank
Tariff 301 - XA: No
Truckload Volume Cubic Feet - XA: 0.00000
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

Emissions : Announced
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 16.0000 x 9.0000 x 3.0000 inches
Weight: 10.0000 PG
