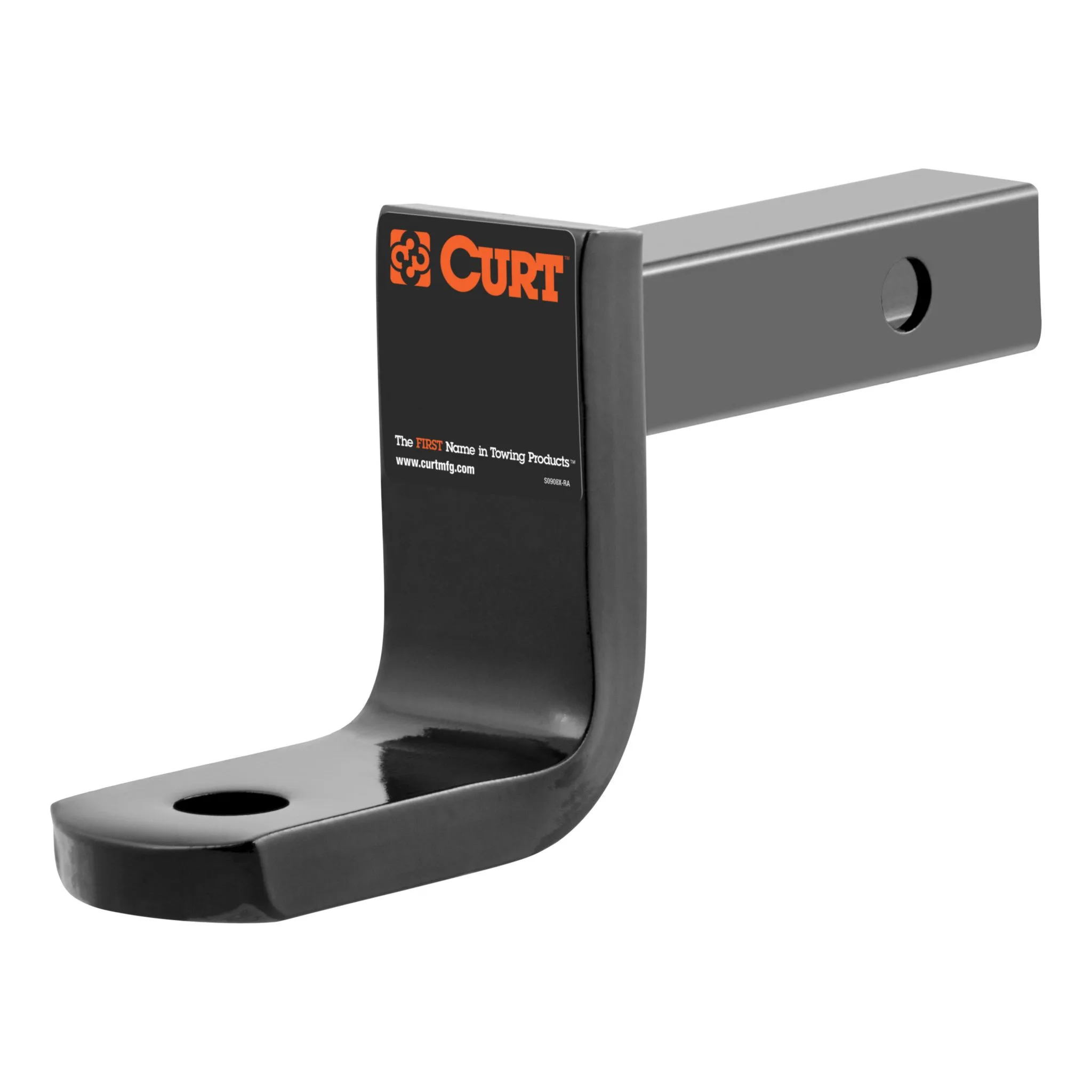

Class 1 Ball Mount (1-1/4″ Shank, 2,000 lbs., 3-1/4″ Drop, 6-1/4″ Long)

CURT class 1 ball mounts are designed for a variety of lightweight towing applications. For basic utility trailers, canoe haulers and other light-duty trailers, a class 1 ball mount gets the job done. CURT class 1 ball mounts are designed to complement our class 1 trailer hitches and come in several different styles, offering a range of shank lengths and drop and rise options. A class 1 ball mount is typically used on compact cars, full-size cars, minivans and crossover SUVs, but it can be used on virtually any trailer hitch with a 1-1/4" x 1-1/4" receiver tube (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This class 1 ball mount features a gross trailer weight capacity of 2,000 lbs. and a tongue weight capacity of 200 lbs. It has a length of 6-1/4", a drop of 3-1/4" and a rise of 2-5/8". CURT ball mounts, like our trailer hitches, are built to last. They are made from quality steel that is CNC-formed and robotically welded to be an exact fit for your receiver hitch. To protect our class 1 ball mounts from corrosion, UV damage and scratches, we coat each one in a powder coat of high-gloss black for a sharp finish.

Additional Attributes:

GTIN: 00612314002351
Container Volume Cubic Feet – XA: 0.00000
Container Volume Cubic Meter – XA: 0.00000
Drop: 3 1/4 IN
Finish – XA: GLOSS BLACK POWDER COAT
Gross Trailer Weight (GTW): 2,000 LB
Hole Size: 3/4 IN
Item Class – XA: OMF
Item Height – XA: 0.000
Item Length – XA: 0.000
Item Width – XA: 0.000
Master Case Height Inches – XA: 0.000
Master Case Length Inches – XA: 0.000
Master Case Volume Cubic Feet – XA: 0.00000
Master Case Weight Lbs – XA: 0.000
Master Case Width Inches – XA: 0.000
Material – XA: Carbon Steel
Mount Type Description – XA: Blank
Pallet Qty – XA: 700.000
Pallet Total Height Inches – XA: 0.000
Pallet Total Weight Per – XA: 0.000
Parcel Allowed – XA: Yes
Product Weight – XA: 0.000
Prop 65 Label Text – XA: Blanks
Prop 65 Material – XA: Unknown
Prop 65 Reason – XA: Unknown
Prop 65 Warning Label Type – XA: Unknown
Prop 65 Warning Y/N – XA: NO
Rate Class – XA: 60.0
Receiver Tube Size: 1-1/4 IN
Retail Height – XA: 2.000
Retail Length – XA: 8.810
Retail Width – XA: 4.250
Rise: 2 5/8 IN
Sales Family Code – XA: ACCES
Sales Family Description – XA: ACCESSORIES
Sales Group Description – XA: BALL MOUNT
Shipping Weight – XA: 3.150
Side Application Type Description – XA: Blank
Tariff 301 – XA: No
Tongue Weight (TW): 200 LB
Truckload Volume Cubic Feet – XA: 0.00000
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 8.8100 x 4.2500 x 2.0000 inches
Weight: 3.1500 PG
